Settings
All keys are under neuralInverse.hdl.. They hold machine facts only (tool paths, extra arguments, the PDK root, the language server choice); a design's options belong in hdl.json. Settings that name executables are restricted in untrusted workspaces.
| Setting | Default | Meaning |
|---|---|---|
enabled | false | Turns the environment on |
projectFile | hdl.json | The project file, relative to the workspace folder |
paths.<tool> | empty | Path to a tool or its folder |
lint.onSave | true | Lint on save |
lint.verilatorArguments, lint.ghdlArguments | [] | Extra lint arguments |
simulation.icarusArguments, simulation.verilatorArguments, simulation.ghdlArguments, simulation.nvcArguments | [] | Extra simulation arguments |
simulation.ghdlWaveform, simulation.nvcWaveform | true | FST of every signal for VHDL testbenches |
simulation.compiledLibraries | {} | Compiled vendor simulation libraries by simulator |
cocotb.python, cocotb.waveform | empty, true | cocotb |
vunit.python, vunit.arguments, vunit.waveform | empty, [], true | VUnit |
implementation.yosysArguments, implementation.nextpnrArguments | [] | Extra synthesis and place and route arguments |
implementation.vivadoSynthesisArguments | [] | Extra synth_design options for Vivado targets |
implementation.parallelRuns | 2 | Open-flow strategy runs at once |
program.openFPGALoaderArguments | [] | Extra openFPGALoader arguments |
openxc7.chipdbDirectory | empty | nextpnr-xilinx chip databases |
vivado.boardRepoPaths | [] | Company Vivado board files |
asic.pdkRoot | empty (PDK_ROOT) | PDK folder |
asic.drc, asic.lvs | true | Run the PDK's DRC and LVS decks |
verilog.languageServer, verilog.languageServerArguments | auto, [] | Verible or svls |
vhdl.languageServer, vhdl.languageServerArguments | auto, [] | vhdl_ls |
keymap | none | none, vivado, quartus; see Edit HDL and constraints |
templates.folders | [] | Company template folders |
hdl.json keys
The project file is described on Requirements and project setup; a JSON schema gives completion and validation. The full set of keys:
| Key | What it holds | Page |
|---|---|---|
name, sources, top, includeDirs, defines, vhdlStandard, buildDirectory | The design | Setup |
testbenches[]: name, top, sources, simulator, timeout, defines, cocotb, vunit, vendor | Testbenches, cocotb modules, VUnit scripts, vendor simulation runs | Simulate and test |
formal | SymbiYosys files | Formal |
targets[]: name, family, device, package, chipFamily, constraints, top, frequency, board, cable | FPGA targets | Open flow, Vendor builds |
targets[].activity | Testbench switching activity for power | Vendor builds |
targets[].vivado | Imported file sets, IP, block designs, upgradeIp, strategies with directives and hooks, messageConfig, waivers, qorSuggestions, incremental, outOfContext, ipRepositories, board part | Vendor builds |
targets[].quartus | edition, IP, upgradeIp, files, parameters, assignments, partitions, rapidRecompile, designAssistant, designAssistantWaivers, niosv | Vendor builds |
targets[].libero, dieVoltage, programmer | constraintTools, cores, initialization | Vendor builds |
targets[].radiant, performanceGrade, synthesis, xcf | ip, strategyFile, strategy | Vendor builds |
targets[].debug | ILA probes and options, Signal Tap file, or Reveal probes, trigger units and expressions | Hardware debug |
targets[].configMemory, exportHardware, tandem | Configuration memory, Vitis hand-off, tandem configuration | Program the board |
targets[].reconfiguration | Partitions, modules and configurations | ECO and partial reconfiguration |
hls[] | Vitis HLS components | IP, packaging and HLS |
asic[] | Chips | ASIC |
Supported tools and their state
| Tool | State |
|---|---|
| Verilator, Icarus Verilog, GHDL, NVC, VUnit, cocotb 2 | Verified (Linux) |
| Verible 0.0-3622, vhdl_ls 0.88.0 | Verified (Linux) |
| SymbiYosys, eqy | Verified (Linux); equivalence on open-flow netlists only |
| Yosys, nextpnr (iCE40, ECP5, Gowin), icepll, ecppll, gowin_pll | Verified (Linux) |
| openXC7 (nextpnr-xilinx, Project X-Ray) | Verified (Linux); bitstream built, not programmed |
| OpenROAD, KLayout 0.28 and 0.30, Magic 8.3.465, netgen 1.5.272 | Verified (Linux) on the test designs |
| openFPGALoader | Modelled; no board programmed |
| AMD Vivado, Vitis HLS | Kit shipped; not yet run against Vivado |
| Altera Quartus Prime | Kit shipped; not yet run against Quartus |
| Microchip Libero SoC, FlashPro Express | Kit shipped; not yet run |
| Lattice Radiant, Radiant Programmer | Kit shipped; not yet run |
| Questa, Riviera-PRO, Xcelium, VCS, XSim | Kit shipped (Vivado and Quartus flows); modelled (Libero) |
File formats
| Format | What the module does | State |
|---|---|---|
.v, .vh, .sv, .svh, .vhd, .vhdl | Colouring always; language servers, lint, elaboration with the environment on | Verified (Linux) |
.pcf, .lpf, .cst, .sdc, .xdc | Colouring, checks against the top, I/O planner edits | Verified (Linux) for placement constraints |
.pdc, .ldc, .fdc, .ndc (Libero, Radiant) | I/O planner and constraint editor edits, Libero checks | Kit shipped (Libero); modelled (Radiant) |
hdl.json | The project, with a schema | Verified (Linux) |
.vcd, .fst | Waveform Viewer, our own readers | Verified against GTKWave's reader |
<dump>.layout.json | The waveform viewer's saved layout | Verified (Linux) |
.ghw | Not read | |
.sby, .eqy | Formal tasks and equivalence checks in the Testing view | Verified (Linux) |
.gds, .oas | Layout Viewer, our own readers | Verified against KLayout |
.xpr, .xci, .xcix, .bd (Vivado) | Import, project edits, IP, diagrams | Readers and writers verified on real files (Linux); Vivado runs kit shipped |
component.xml (IP-XACT) | Customize IP forms, packaged IP | Reader verified on real files (Linux); kit shipped |
.wcfg (Vivado) | Waveform layout over a VCD the XSim run writes | Kit shipped |
.wdb (Vivado) | Not read: proprietary | |
.ltx, .tsm | ILA probes file; ILA trigger state machine programs | Kit shipped |
.rqs | Vivado QoR suggestions applied before synthesis | Kit shipped |
.qpf, .qsf, .ip, .qip, .qsys, .ipx (Quartus) | Import, assignment edits, IP, diagrams, the IP catalogue | Readers and writers verified on real files (Linux); Quartus runs kit shipped |
.stp (Signal Tap) | Compiled in by the flow; not edited (format undocumented) | |
.mif, .hex | In-System Memory saves, Nios V memory images | Kit shipped |
.prjx, .cxf (Libero) | Projects, SmartDesign diagrams | Readers verified on real files (Linux) |
.vm, .edn, .srr, .fse (Synplify Pro) | Technology view, state machine encodings | Modelled |
.rdf, .ldf, .sty, .ipx, .rvl, .rvs, .rva, .trc, .xcf (Radiant, Diamond, Reveal) | Projects, strategies, IP, Reveal projects and captures, chain files | Readers and writers verified on real files (Linux) |
.gprj (Gowin EDA) | Import | Modelled |
.mcs, .bin, .prm, .xsa | Configuration memory images, Vitis hardware platform | Kit shipped |
.jic, .rpd, .pof | Quartus configuration memory images | Modelled |
Confirmations, records and policy
Writes to a device always ask first. Program FPGA Board shows the target, the board or cable, the bitstream with its size, build time and SHA-256, what the write replaces, and any timing failure, then hashes the bitstream again and refuses a changed one. Vendor hardware-debug and configuration-memory actions confirm too: programming from Hardware Debug confirms the SHA-256; JTAG-to-AXI writes and In-System Sources and Probes and memory writes are each confirmed, read back and compared; Reveal Analyzer settings are written after a confirmation; an ECO's write_bitstream runs only after a confirmation, and only once the changes are routed and DRC shows no error; Pblock edits show the XDC lines before they are written.

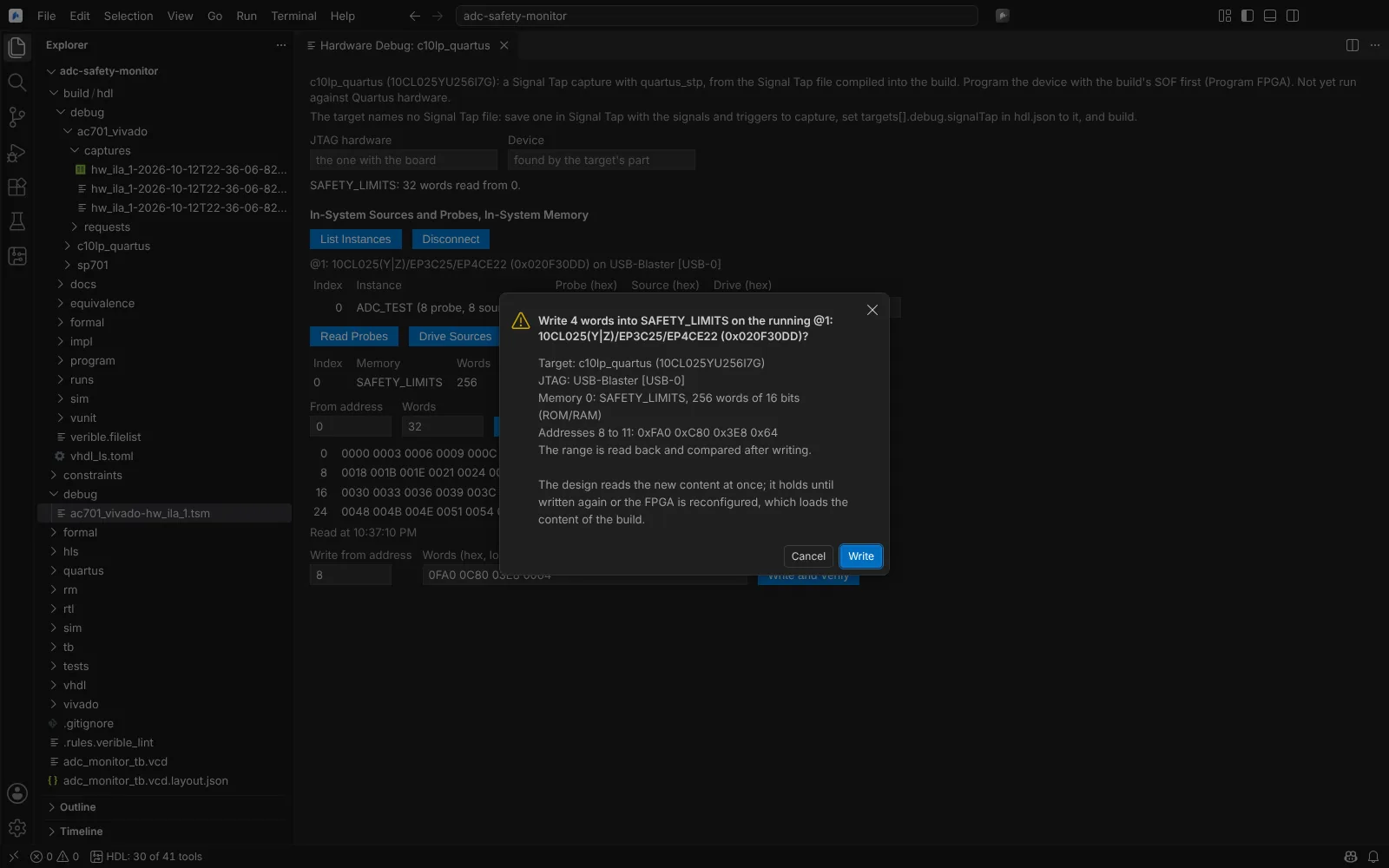

A Quartus In-System Memory write waiting for confirmation, with the target, cable, addresses and values
Records:
- Each programming is logged with the bitstream's hash.
- Each build is remembered with the commit it came from, and the FPGA Implementation panel shows what changed against the previous build.
- Each Vivado ECO is recorded in the build folder as
eco.json, a change log and a replay script. - Vendor kits' archives hold logs, reports and generated scripts, with only the sizes and SHA-256 of bitstreams.
Your organisation's policy: with Neural Inverse Govern, builds and simulations that run as tasks or launch configurations, and changes to neuralInverse.* settings, are decided by the in-app policy check, which can allow, deny or require approval. The policy format also has rules for hardware operations such as loading a bitstream (domainActions); the HDL module does not yet submit its operations to that check in this release, so the confirmations above are the control that stops an unintended write. See Govern.
Agent tools: most HDL actions are also tools the Editor's agents can call (builds, simulations, timing queries, IP, project edits, hardware debug and more). Read-only tools run without asking; every tool that changes a file, runs a vendor tool's state-changing step, or touches a board asks you to confirm, and the Tcl consoles' agent tools confirm any Tcl that is not a query.
Downloads: the module downloads nothing itself. Part and board lists, PDKs and device databases are read from where your tools installed them, never copied into the product.
Troubleshooting
| Problem | What to do |
|---|---|
| Only colouring works | Turn on neuralInverse.hdl.enabled (or run Neural Inverse: Enable HDL Environment) and trust the workspace. |
| The status bar says HDL: n of m tools | Click it or run Show HDL Tools: it lists the missing tools with install hints. Set neuralInverse.hdl.paths.<tool> for tools in custom folders. |
| Go to Definition does not find a module in another file | The language servers read the sources from hdl.json; check its sources globs. Restart HDL Language Servers after big changes. |
vhdl_ls does not start | It needs its standard libraries; its status says how to install them or pass --libraries. |
| A view stays blank after a SystemVerilog change | Elaboration through Yosys failed. Lint the design and check Problems; the supported SystemVerilog subset is Yosys's. |
| The CDC view calls a Gray-coded FIFO unsafe | A known limit of the RTL crossings view. On Vivado targets, Vivado's Report CDC classifies the pointers as synchronised; see Timing analysis and constraints. |
| Equivalence stops at a memory | Yosys 0.33 cannot model some memories there; the partitions it cannot prove are listed. |
| A vendor project file written into a new folder is not listed | Fixed on Linux (the Editor now searches added folders); on macOS and Windows the file watcher has not been checked. Run Refresh Vivado and Quartus Projects. |
| A vendor build fails at the licence | The message names the FlexNet feature, where the tool looked, and what to set. |
| A Pro Quartus project is built with Standard (or the reverse) | The build stops with a message; install the edition the edition key names. |
| A vendor path behaves differently on your installation | Run the matching verification kit and send the archive; vendor paths have not yet been run against the real tools. |

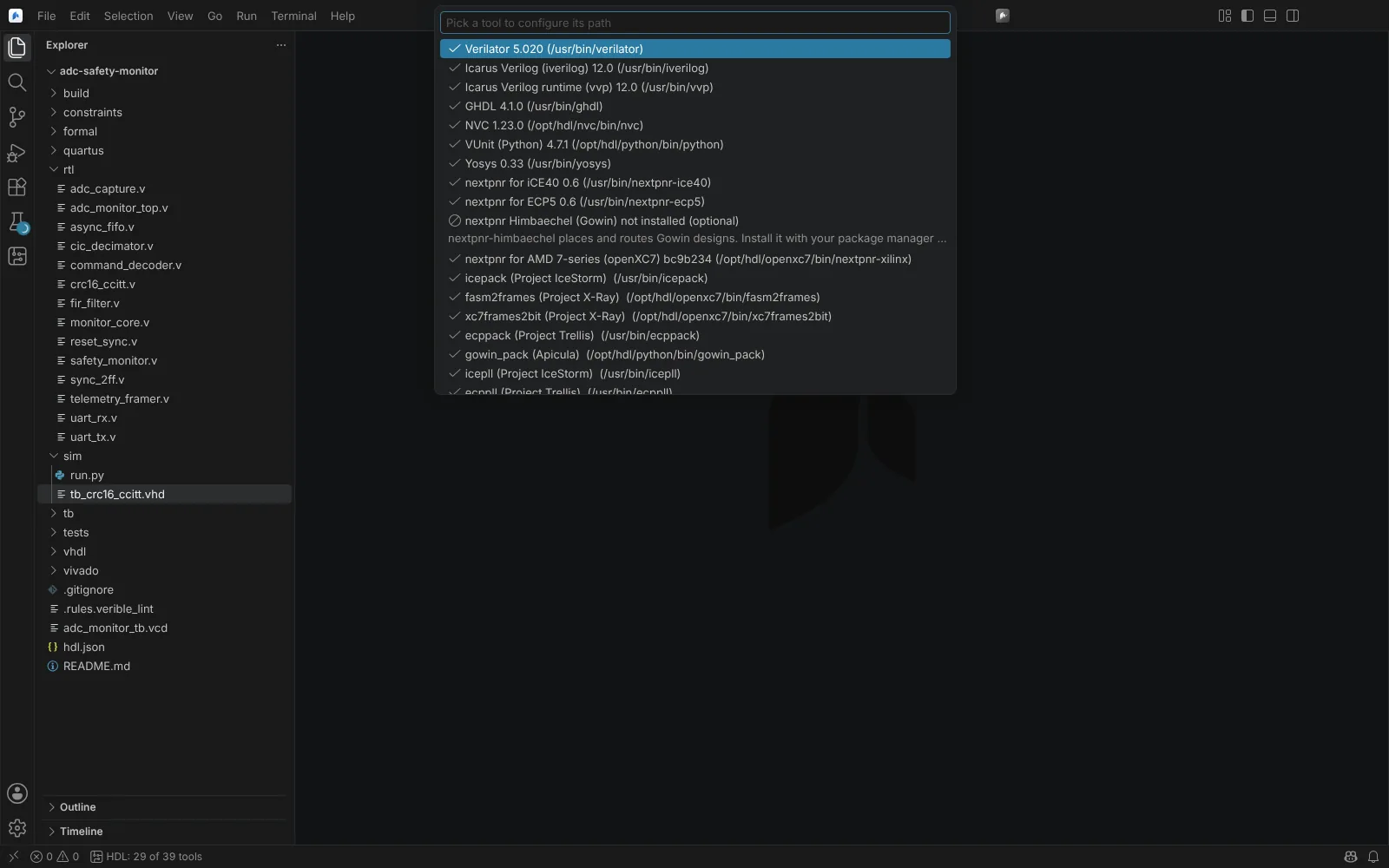

Show HDL Tools: each tool found with its version and path, and an install hint for a missing one
To report a problem: what you did, what you expected, what happened, the tool versions, and a screenshot or the log, or the kit's archive.
